The Bottom LineA compact, quiet direct drive kit that makes a real jump over gear-driven wheels for PC players, held back by basic pedals and a hard ceiling on torque and console support.
SR-P Lite, steel, Hall sensors, throttle and brake
Mounting
4 holes on the bottom plus included desk clamp
Software
Moza Pit House
Weight
about 7.6 pounds (base)
In the box
base, ES wheel, pedals, table clamp, power supply, USB cable, toolkit
This Moza R5 bundle review is for anyone eyeing a first direct drive wheel without paying mid-range money. The kit pairs a 5.5 Nm base with the ES steering wheel, SR-P Lite pedals and a desk clamp, and it is built for PC sim racing only. It beats the gear-driven wheels many players start on, while the pedals and the torque ceiling are the places where it shows its price.
The R5 is compact for a direct drive base. Moza lists an aviation-grade aluminum alloy housing, a weight of roughly 7.6 pounds and a metal quick release on the front. All connections sit at the back: USB, power, pedals, shifter, dash and the optional emergency stop. The power button is back there too, which is a small annoyance if you reach for it often.

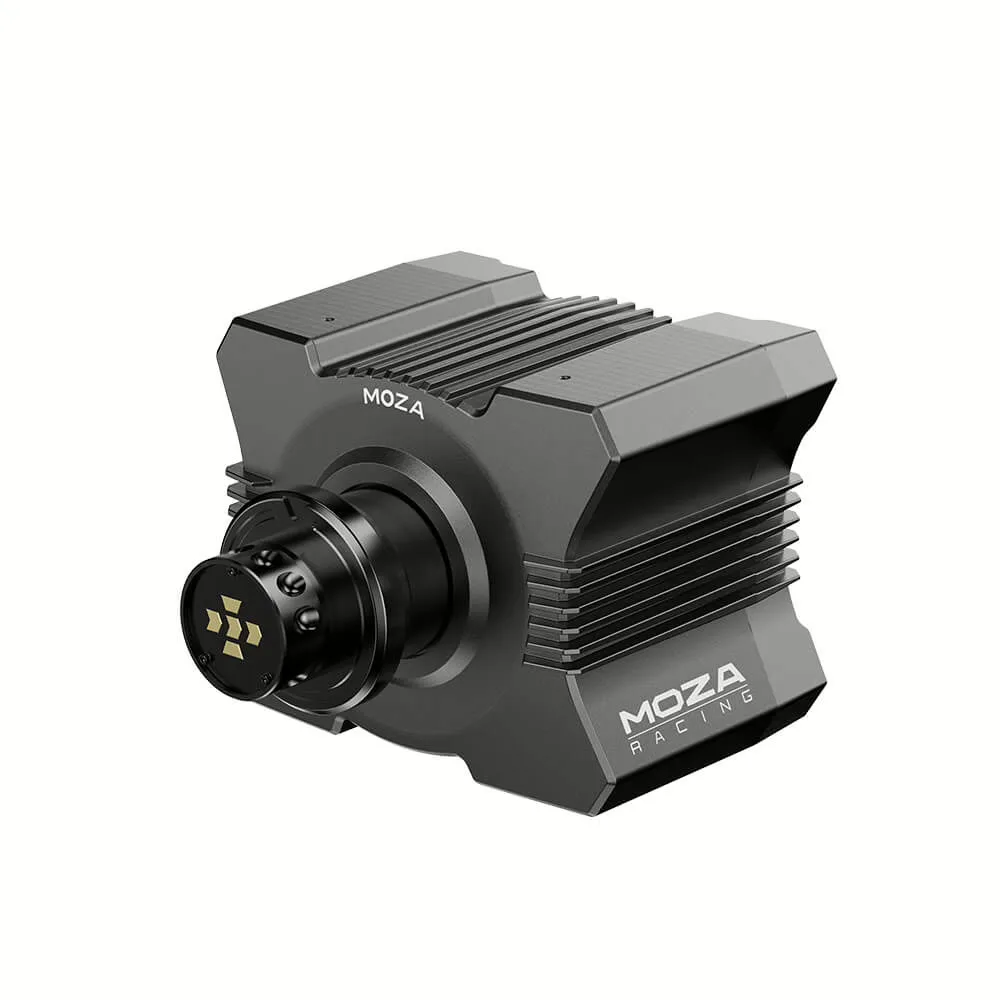

The R5 wheelbase has a metal quick release and a finned aluminum body (Image: Moza Racing)
The quick release is strong enough that pulling a wheel off can take effort, and wheels seat with a firm clunk. Mounting is where the small size can bite. The base bolts down through four holes on the bottom, and on some cockpits only two of them line up. A two-screw mount can still hold firm, but take care not to overtighten, because stripped threads are possible. Moza sells an adapter plate with more holes if your rig needs one.

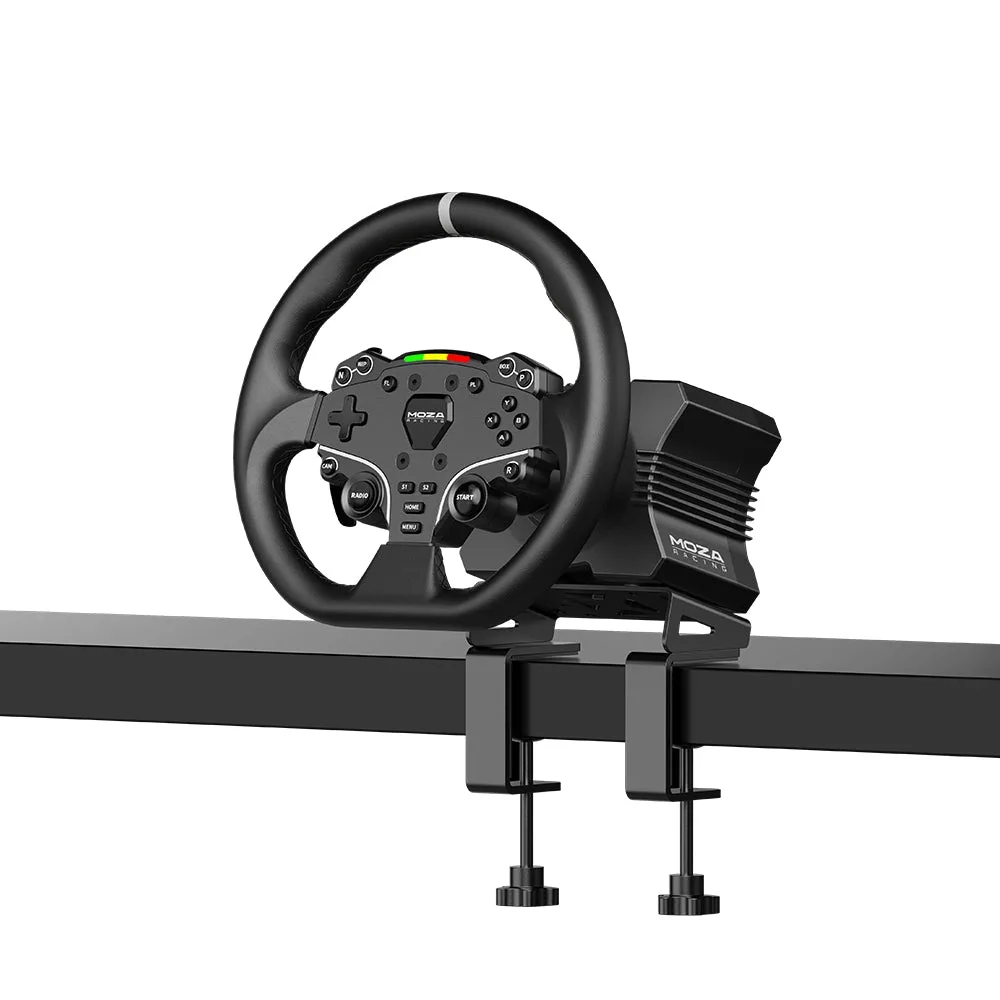

The included clamps let the R5 mount to a desk without a cockpit (Image: Moza Racing)
The included clamp is the reason this bundle works for desk setups. It uses two thumbscrew knobs, and the lower half is bare metal, so rubber or plastic washers are a cheap way to protect the underside of your desk. Legroom under a desk can also be tight, and the clamp holds the wheel at a fixed angle.
This is where the R5 earns its place. A direct drive base has no gears or belt between the motor and your hands, so road texture, curbs and the moment a tire loses grip come through more clearly than on a Logitech G923, Thrustmaster T150 or similar. The wheel also reacts quickly and catches slides well. Moza pairs the hardware with its NexGen 4.0 force feedback algorithm and an iRacing 360 Hz mode.
Operation is quiet because there is no cooling fan. Pit House ships with a power and heat limiter turned on, and the base can run warm if you switch that limiter off, so leave it alone unless you have a reason.
The limit is torque. At 5.5 Nm peak, the R5 feels more substantial than the number suggests and is plenty for players stepping up from a gear-driven wheel. Anyone used to an 8 to 10 Nm base will notice the missing headroom, and demanding setups such as rally or drifting can push past what it delivers. The R5 cannot be upgraded in torque, so a stronger base later means replacing it, although Moza wheels and accessories carry over to its other bases.
ES Steering Wheel: Capable, but Basic
The ES wheel is an 11-inch rim wrapped in microfiber leather, with an aluminum alloy frame and front plate, 22 buttons and a row of 10 RGB shift LEDs. It has a D-pad, two paddle shifters and the usual sim buttons, and it is enough to go racing right away. Compared with Moza’s pricier rims, it feels a little basic. The paddles keep travelling after the click, and the materials are fine rather than premium.

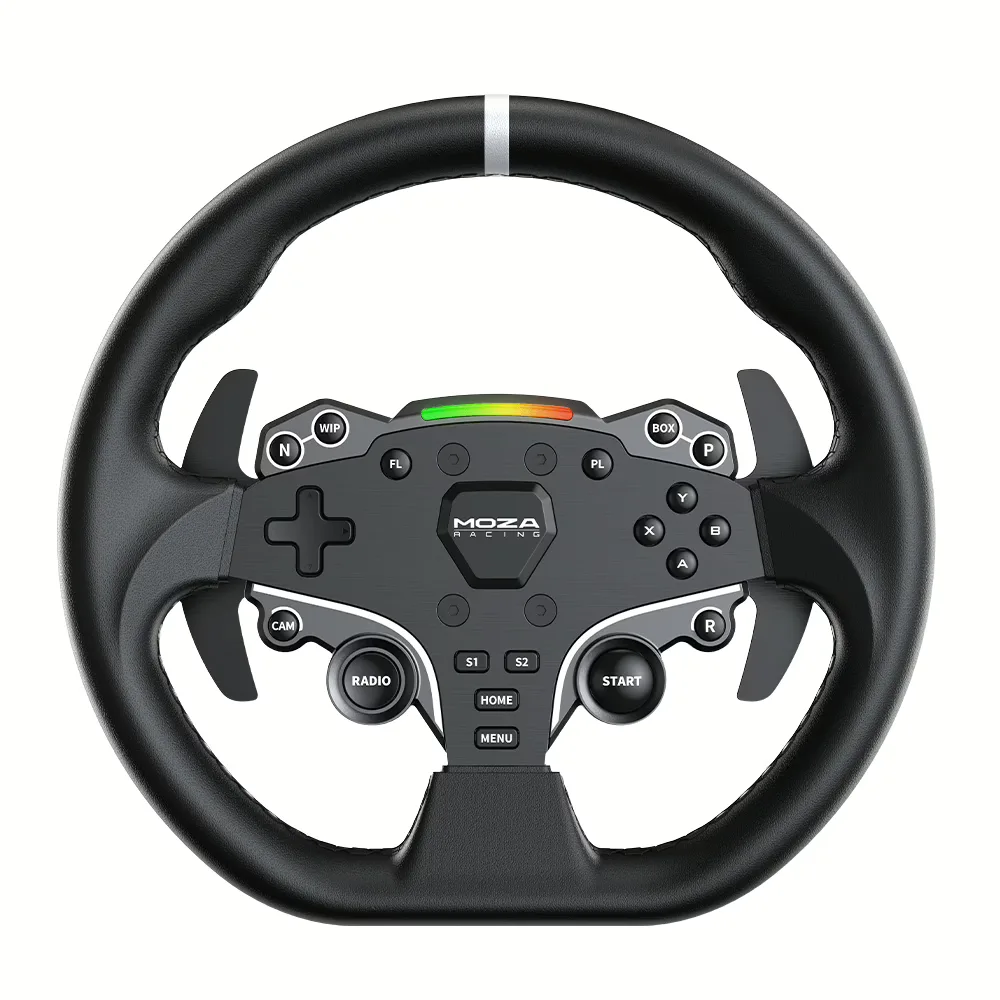

The ES wheel has a D-pad, paddles and a row of shift LEDs (Image: Moza Racing)
Because of the quick release, you can swap rims later. Moza sells a formula-style 280 mm mod and a 12-inch round mod for the ES, and early compatibility problems with some rims were fixed on current hardware revisions. Larger, heavier rims can dull feedback crispness on a 5.5 Nm base, so smaller is the safer upgrade.
SR-P Lite Pedals: The First Upgrade Target
The pedals are the weakest part of the bundle, though not a bad one. They use steel construction with Hall sensors, adjustable spacing and height, customizable output curves in software and an anti-slip base. The problem is feel. The brake lacks a progressive resistance, and software curves cannot change what your foot senses. Moza sells a brake performance upgrade kit to fix this, and many buyers will want it.

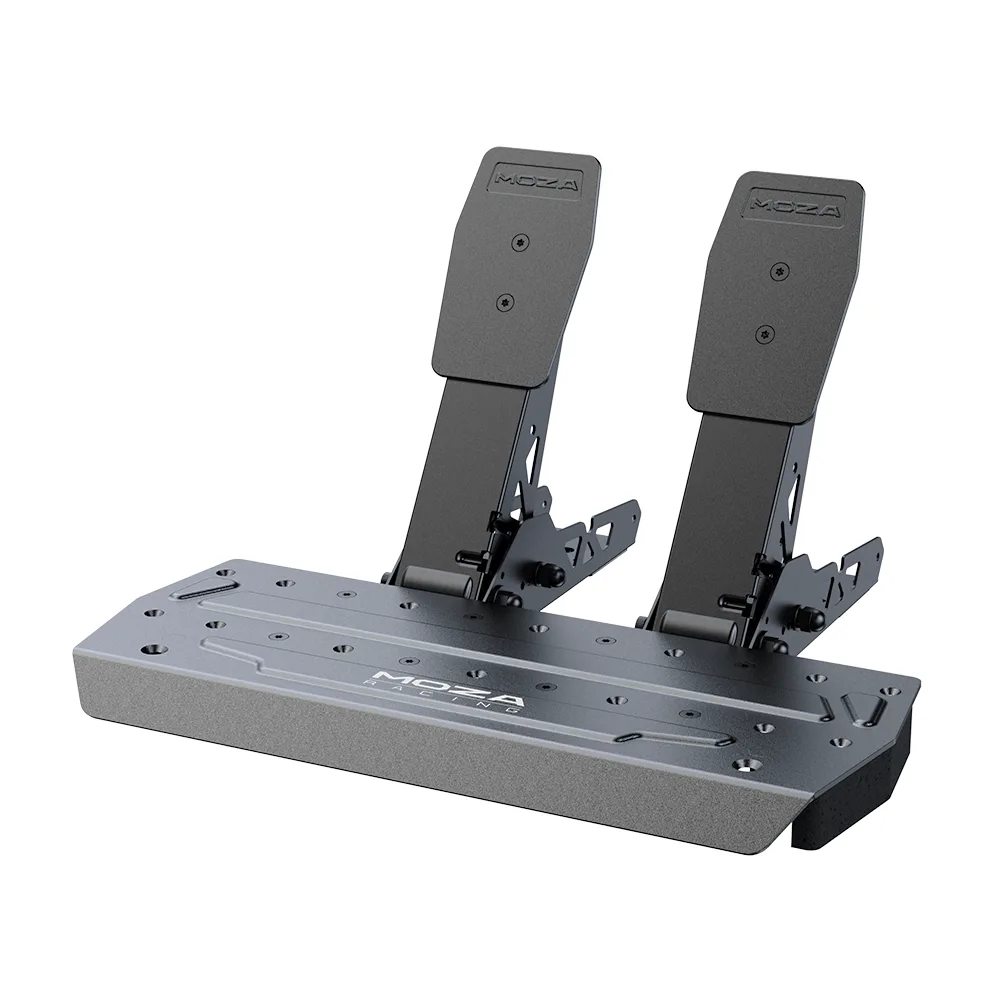

The SR-P Lite pedals come with throttle and brake only (Image: Moza Racing)
The bundle includes no clutch, so manual-shift fans need a separate clutch pedal and, if they want one, a shifter. The pedal spacing is adjustable to make room for it. If you run the kit on a desk, plan a way to keep the pedals from sliding when you brake hard.
Moza Pit House Software: Deep, With Presets
Pit House is the control center for the base, wheel and pedals. It adjusts force feedback strength, pedal curves, button mapping and LED behavior, and it includes presets such as GT, Formula, Drift and Rally. Firmware updates for every device run through the base’s single USB connection. Connecting the bundle is straightforward, but the number of settings can feel intimidating at first, so start with a preset. Some features, including the wheel LEDs and dash telemetry, need the software running and depend on game support.
What You Get and What It Works With

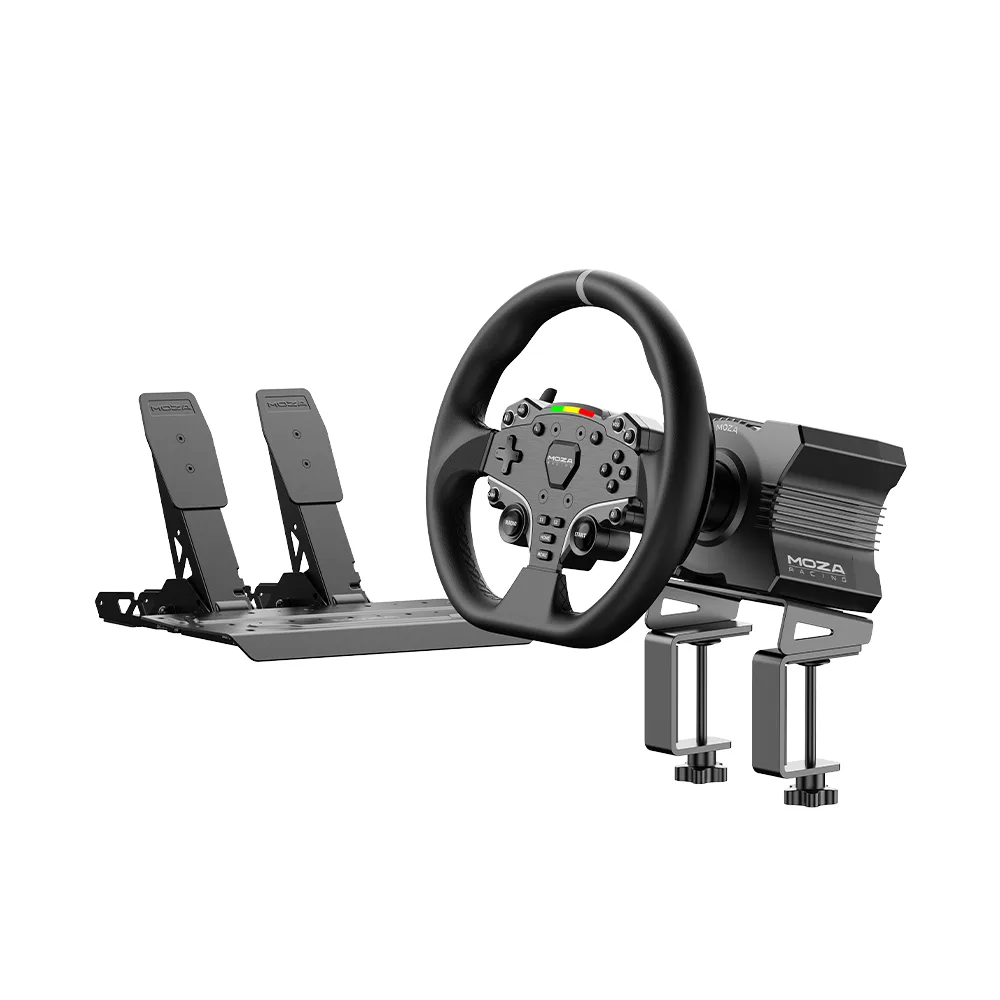

The R5 bundle: base, ES wheel, pedals and desk clamps (Image: Moza Racing)
The box holds the R5 base, ES wheel, SR-P Lite pedals without clutch, table clamp, power supply, USB cable and toolkit. It is a plug-and-play setup on Windows PCs. It does not work with PlayStation or Xbox, which is the biggest reason some players should look elsewhere. The base also has ports for pedals, a shifter, a dash and an emergency stop, so the kit has room to grow.
Who Should Skip the Moza R5 Bundle
Console players, since the R5 is PC only.
Anyone who already knows they want 8 Nm or more, because the base cannot be upgraded in torque.
Players who want a clutch and load-cell-style braking out of the box, since both cost extra here.
Owners of a mid-range direct drive or belt wheel who would gain little from a sidegrade.
Is the Moza R5 Bundle Worth It?
Moza R5 Bundle (Direct Drive Base, ES Wheel and SR-P Lite Pedals)
GameCuki VerdictRecommended
What Our Verdicts Mean
GameCuki Top PickThe best option in its class, with no serious, repeated problems.
RecommendedA good buy for most people. Weaknesses are minor or only matter to some players.
Buy With CaveatsRight for a specific kind of player only, because of a significant drawback.
Skip ItNot recommended. A better option exists at a similar price.
For a PC sim racer stepping up from a gear-driven wheel, the Moza R5 bundle is one of the easier direct drive recommendations: compact, quiet, detailed and expandable, with a desk clamp that gets you racing right away. Budget a little extra for the brake upgrade and, if you shift manually, a clutch. If you play on console or already crave a stronger base, skip it. Our Logitech G923 review covers the wheel it most often replaces.
