Both are 8BitDo flagships with a charging dock, but they’re built around different shapes and different players. The 8BitDo Pro 3 vs Ultimate 2 question comes down to this: do you want a retro, PlayStation-style pad that works on almost everything, or an Xbox-style controller built for low-latency PC play? Latency, specs, ergonomics and software tell the story.
Best for Switch and Multi-Platform
8BitDo Pro 3
Bottom LineThe controller we'd recommend to most people, because it works with almost everything and has a superb D-pad for retro games.
8BitDo sells the Ultimate 2 in two versions. This comparison uses the Ultimate 2 Wireless, the PC model with 1000Hz polling. The Ultimate 2 Bluetooth is a separate model for Switch, Switch 2 and Windows, covered in our 8BitDo Ultimate 2 Wireless vs Bluetooth comparison. We compared both controllers using 8BitDo’s official specs, independent latency measurements and owner feedback.
Works with Switch 1 and 2, Windows, SteamOS, Android and Apple devices
2.4G, Bluetooth and wired connections on Switch
Swappable magnetic ABXY buttons for Switch or Xbox layouts
Symmetrical, PlayStation-style stick layout with the D-pad up top
A clicky, precise D-pad that suits 2D and retro games
Two ball-top stick caps in the box

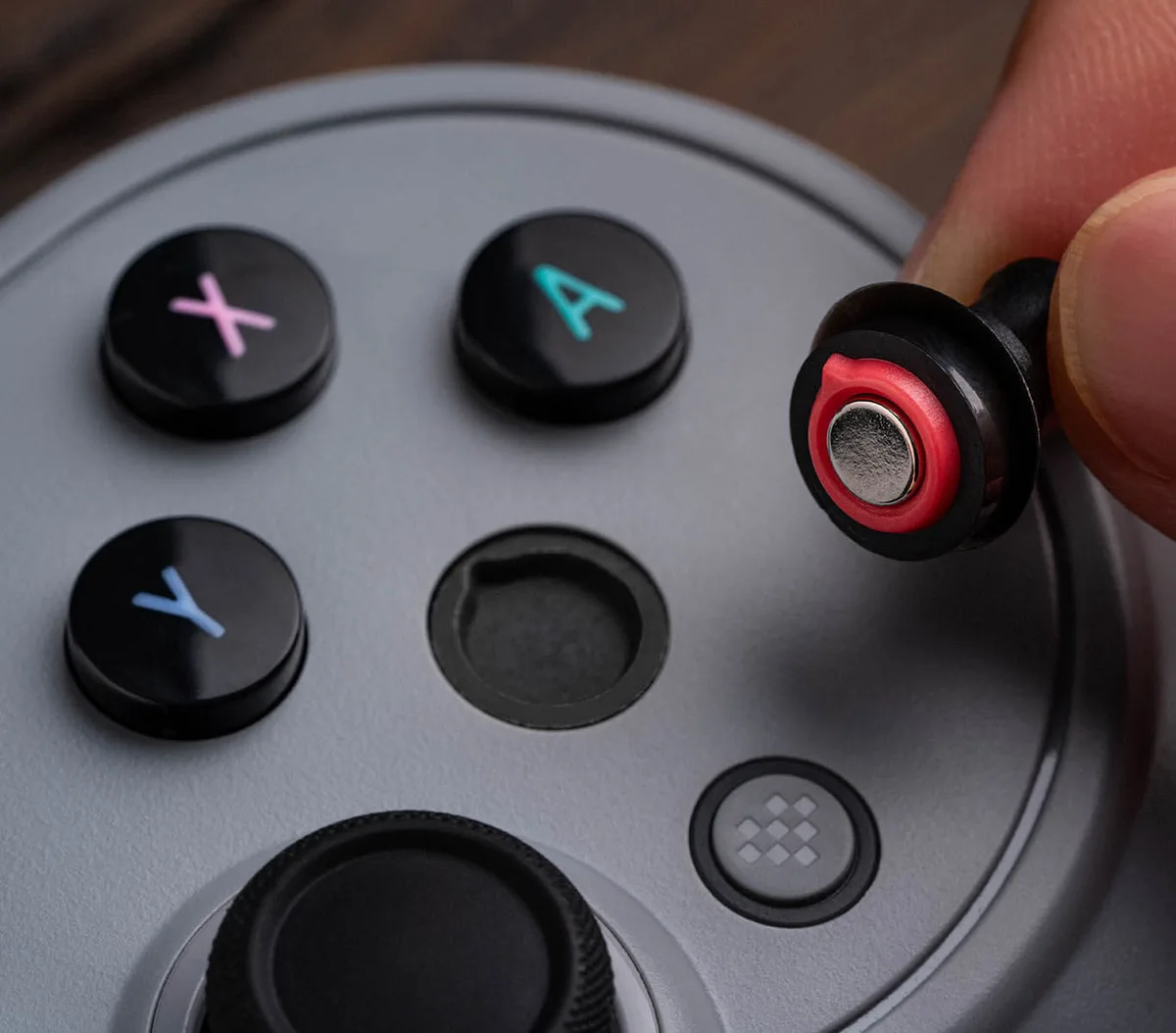

The Pro 3’s magnetic ABXY buttons swap between Switch and Xbox layouts. (Image: 8BitDo)
Why pick the 8BitDo Ultimate 2:
1000Hz polling over its 2.4G dongle and over a cable
Roughly half the button and stick latency of the Pro 3
6-axis motion controls on PC over 2.4G
RGB Fire Ring lighting around the sticks
Usually costs a little less

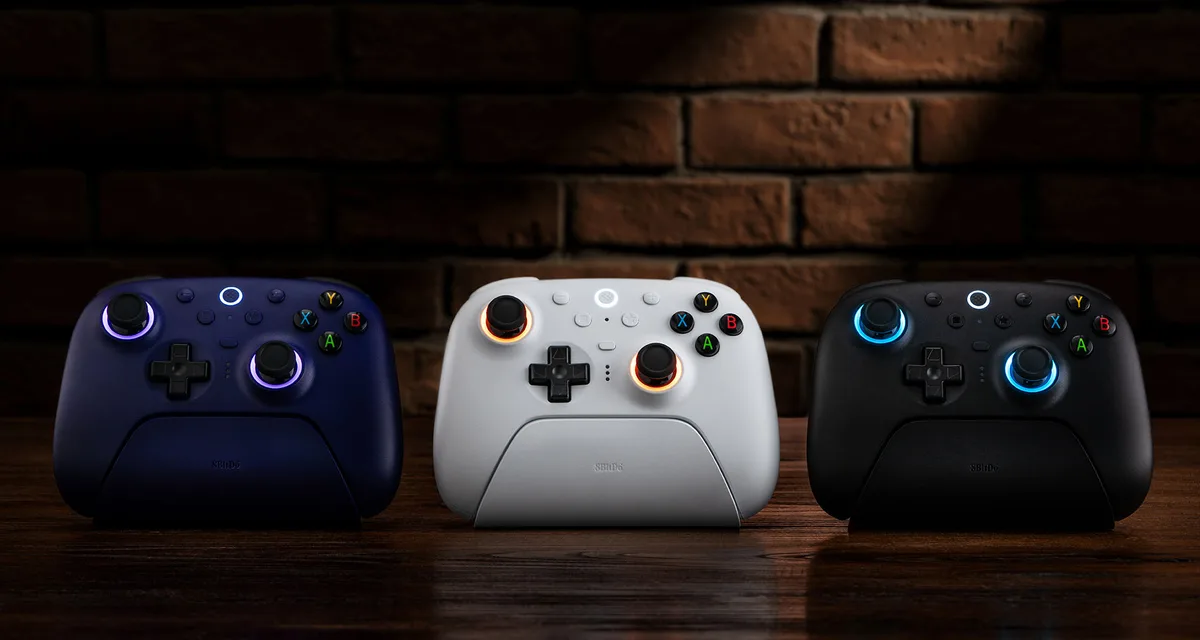

The Ultimate 2 Wireless has RGB rings around its sticks and comes with a charging dock. (Image: 8BitDo)
Latency: The Ultimate 2 Is Much Faster on PC
This is the biggest performance gap between the two. 8BitDo rates the Ultimate 2 Wireless at 1000Hz over its 2.4G dongle and over a cable, while the Pro 3 polls at 250Hz in XInput mode over 2.4G or a cable.
On PC, that shows up in the latency numbers:
Latency
8BitDo Pro 3
8BitDo Ultimate 2
Buttons, cable
5.9ms
2.8ms Wins
Sticks, cable
11.4ms
7ms Wins
Buttons, 2.4G dongle
9.2ms
4ms Wins
Sticks, 2.4G dongle
14.8ms
8.1ms Wins
Buttons, Bluetooth
11.9ms
12ms
Sticks, Bluetooth
28.1ms
16ms Wins
Over a cable or the dongle, the Ultimate 2 responds much faster, often in about half the time. Over Bluetooth, button latency is the same, but the Pro 3’s sticks are slower. For casual and retro games you won’t notice the difference, but for shooters and other fast games on PC, the Ultimate 2 is the better choice. The Pro 3 does have slightly higher stick resolution (11 bits versus 10.5).
Ultimate Software V2: same, plus RGB and motion settings
Charging dock
Yes
Yes, dock can hold the dongle to extend the 2.4G signal
2.4G adapter
USB-C
USB-C
Battery
1000mAh
1000mAh, about 20 hours on 2.4G and 25 hours on Bluetooth
Weight
242.4g
246g
Dimensions
153.6 x 100.5 x 64.5mm
147 x 103 x 61.3mm
3.5mm audio jack
No
No

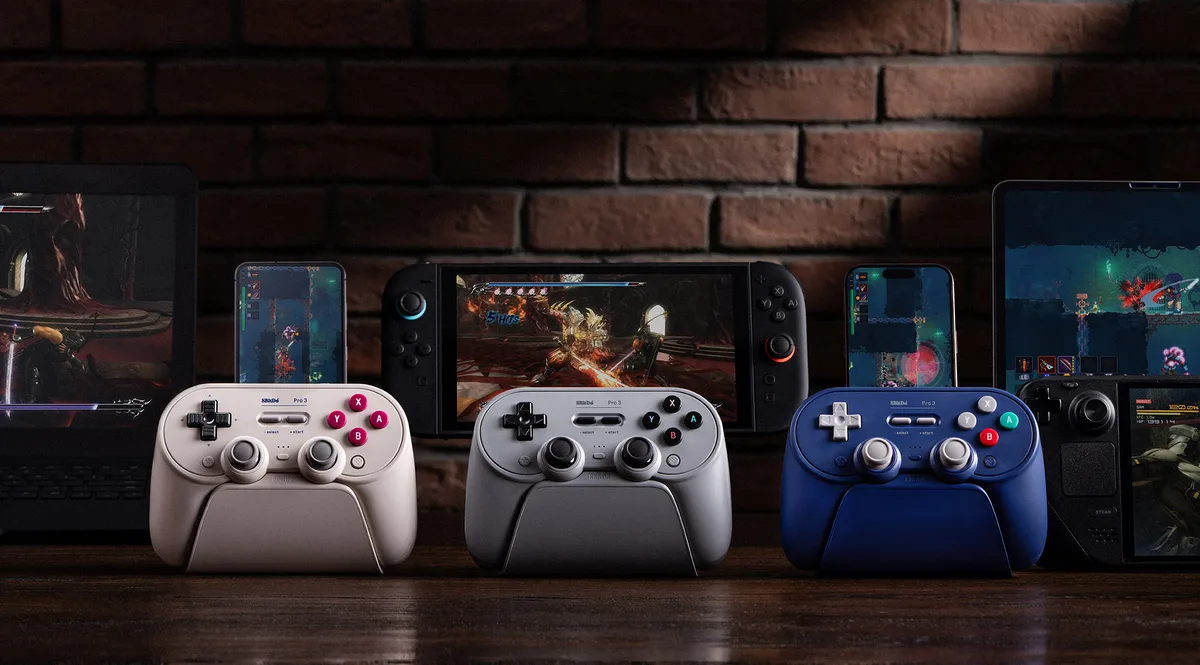

The Pro 3 works with Switch, PC, Steam, Android and Apple devices. (Image: 8BitDo)
A few things the spec sheet doesn’t show. The Pro 3’s D-pad is its best feature, with a clicky, precise feel that makes it a great pick for 2D, platformer and retro games. Its face buttons are loud, with a hollow click that can be distracting, and its rumble is on the weak side compared with Nintendo’s own controllers. On Steam Deck and other SteamOS devices, the Pro 3 connects over Bluetooth or a cable rather than its 2.4G dongle, so plan on Bluetooth if you want to use its gyro wirelessly with Steam Input.

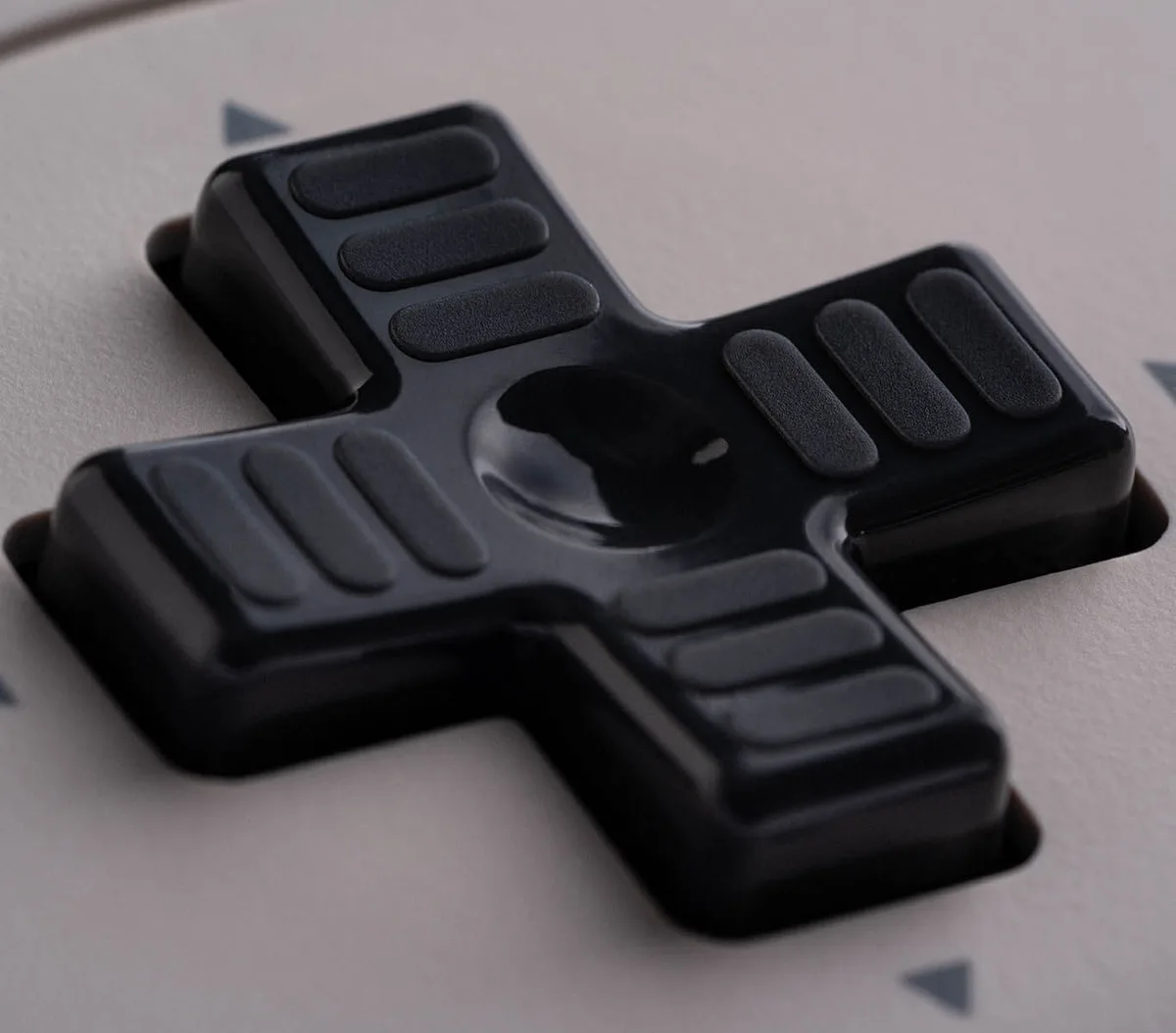

The Pro 3’s tactile D-pad is its standout feature. (Image: 8BitDo)
The Ultimate 2 has a more familiar Xbox shape that’s comfortable for long sessions, and its battery lasts a long time between charges.
Ergonomics: PlayStation Shape vs. Xbox Shape
Both controllers weigh about the same, at 242.4g for the Pro 3 and 246g for the Ultimate 2, so the real difference is the shape. The Pro 3 has PlayStation-style grips with symmetrical sticks and the D-pad in the top-left spot, and it’s a little longer and deeper at 153.6 x 100.5 x 64.5mm. The Ultimate 2 uses an Xbox-style layout with offset sticks in a shorter 147 x 103 x 61.3mm body.
Both are comfortable for long sessions, so pick the layout your hands already know. If you grew up on PlayStation or prefer the D-pad in the main position for 2D games, the Pro 3 will feel natural. If you’re used to Xbox controllers, go with the Ultimate 2.
Macros and Software: Same App on Both
Both controllers use 8BitDo’s Ultimate Software V2, so customization is nearly identical. You can remap buttons, including the L4/R4 bumpers and back paddles, adjust stick and trigger sensitivity and vibration strength, and create macros that run a sequence of inputs from a single button. Settings save to three profiles that you can switch between on the controller. The Ultimate 2 adds RGB lighting and motion control settings to the app.
To set up the Pro 3 in the app, connect it to a Windows PC or Mac with a cable or the 2.4G adapter. The app itself works but can feel clunky at times, especially when you update firmware, so set aside a few minutes for the first setup.
And the Winner Is…
Winner8BitDo Pro 3
The Ultimate 2 is the faster controller, and PC players chasing the lowest latency should buy it. But it isn’t the one we recommend to most people. The Pro 3 works with almost everything, from Switch and Switch 2 to Steam Deck, Android and Apple devices, while the Ultimate 2 Wireless isn’t officially supported on Switch. The Pro 3 also brings swappable face buttons, a PlayStation-style layout and an excellent D-pad for 2D and retro games, on top of the same TMR sticks, Hall effect triggers, extra buttons and charging dock. Its higher latency only really matters in fast PC shooters. So unless you play competitive games on a PC, the 8BitDo Pro 3 vs Ultimate 2 decision goes to the Pro 3, the one controller you won’t outgrow when you switch devices.
